In StockPanels & Bulbs

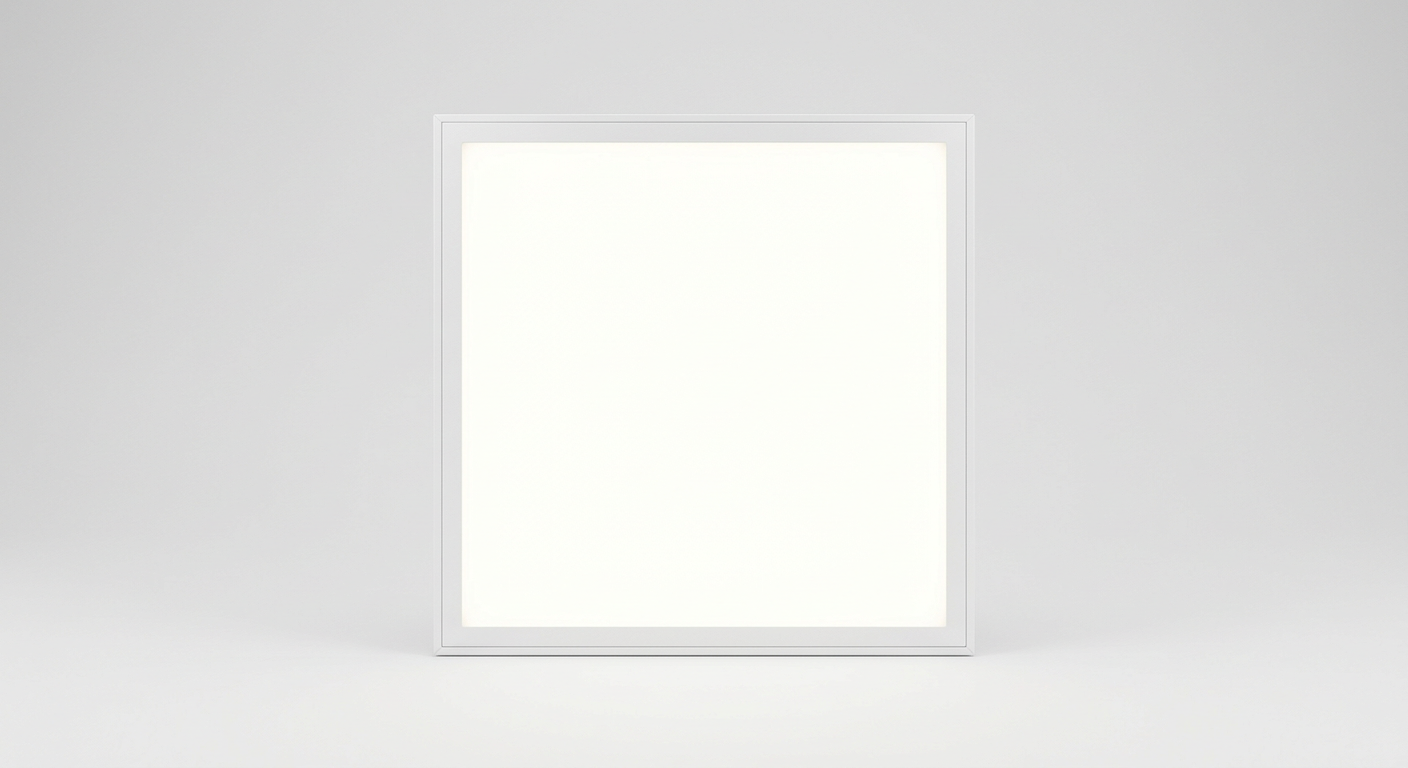

LED Backlit Panel "Premium" 2×2
Ultra-thin 2×2 backlit flat panel with selectable wattage and color temperature, 0–10V dimming, and up to 70% energy savings over fluorescent troffers.
130 lm/W3500K–5000K20/30/40W120–277V
Available color temperatures
2700K3500K4000K5000K6500K
10-Year Warranty
| Model | LL02P1V1.0R1.2 |
|---|---|
| Size | 2×2 ft |
| Wattage | 20W / 30W / 40W (selectable) |
| CCT (color temperature) | 3500K / 4000K / 5000K (selectable) |
| Efficacy | 130 lm/W |
| Input voltage | 120–277V |
| Frequency | 50/60Hz |
| Dimming | 0–10V |
| Power factor | >0.9 |
| IP rating | IP40 |
| Beam angle | 120° |
| Chip | SMD 2835 |
| Dimensions | 23.7" L × 23.7" W × 1.5" D |
| Housing | Aluminum |
| Rated life | 100,000 hours |
| Warranty | 10 years |
- Up to 70% energy savings: Compared with fluorescent troffers.
- Even, natural light: Reduces eye strain across work areas.
- Selectable CCT and wattage: One SKU covers many spaces and requirements.
- Ultra-thin, sturdy build: Fits tight plenums and stands up to high-traffic areas.
- Mercury-free and recyclable: No hazardous mercury content, easier end-of-life handling.
- Up to 100,000-hour life: Long rated life cuts maintenance cycles.
Ideal for: Commercial offices, schools, healthcare facilities, retail, hospitality.
| Model | LL02P1V1.0R1.2 |
|---|---|
| Size | 2×2 ft |
| Wattage | 20W / 30W / 40W (selectable) |
| CCT (color temperature) | 3500K / 4000K / 5000K (selectable) |
| Efficacy | 130 lm/W |
| Input voltage | 120–277V |
| Frequency | 50/60Hz |
| Dimming | 0–10V |
| Power factor | >0.9 |
| IP rating | IP40 |
| Beam angle | 120° |
| Chip | SMD 2835 |
| Dimensions | 23.7" L × 23.7" W × 1.5" D |
| Housing | Aluminum |
| Rated life | 100,000 hours |
| Warranty | 10 years |
- Up to 70% energy savings: Compared with fluorescent troffers.
- Even, natural light: Reduces eye strain across work areas.
- Selectable CCT and wattage: One SKU covers many spaces and requirements.
- Ultra-thin, sturdy build: Fits tight plenums and stands up to high-traffic areas.
- Mercury-free and recyclable: No hazardous mercury content, easier end-of-life handling.
- Up to 100,000-hour life: Long rated life cuts maintenance cycles.
Ideal for: Commercial offices, schools, healthcare facilities, retail, hospitality.
